MIL-UPSSeriesTM
MIL-700-115ATM
- 95% Power Factor Correction
- Universal Input
- Hot Swappable Batteries
- LED Front Panel Display
- Internal Charging System
- SNMP Remote Monitoring

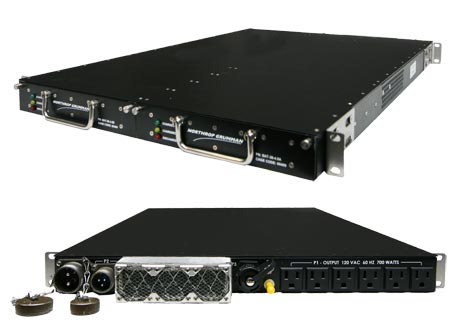

AJ’s Power Source Inc. (AJPS) Cage Code (0P327) is pleased to announce the release of our new Military UPS System. MIL-700-115A is a Ruggedized Military Compliant UPS System Built for deployment and operations equipment. This unit is available to all military, homeland security and government contractors. Built for a Very Low EMI signature and very High Reliability this fully hot Swappable system will keep your product up and running for many years to come.
The MIL-700-115A is a 1U 700 Watt ruggedized UPS System. This system has many unique features such as a 24 VDC Emergency input that can be use to connect the system to any 24 VDC Vehicle System. Stainless steel slide rails allow for multiple rack depths. The system has field replaceable filters and fans. The over all system concepts also include an additional 1U battery system for extended hold time.
We Can Customize to Suit Your Need
Contact us to discuss a solution for you or
email us directly to requst a quote.
Data Specifications
| AC Input Voltage | 100 – 264 VAC 47-63 Hz |
| Battery Backup | 12 minutes at 25C 60% Load |
| Output Voltage | 120 VAC True Sine wave |
| Output Frequency | 60 Hz +/- .2% |
| Harmonic Distortion | <1% with resistive load |
| Output Power | 700 Watts |
| Efficiency | 80% |
| Startup Time | <1 Seconds |
| Control & Status | SNMP |
| Fault Alarms | AC Fail, Battery Power, Battery Status, Temperature Ok |
| Name Plate | Sides of Unit |
| Unit Identification | Sides of Unit |
| Physical Dimensions | 19” 1U Rack Mount |
| Cooling | Front to back internal airflow |
| Weight | <45 Lbs |
Environments
| Altitude | 10,000Ft Operating 40,000Ft Non Operating |
| Temperature | -20 to 50C |
| Humidity | 90% non condensing |
| Fungus | MIL-STD-810F Method 508* |
| Salt Fog | MIL-STD-810F Method 510* |
| Sand, Dust and Volcanic Ash | MIL-STD-810F* |
| Vibration | MIL-STD-810F* / TBD |
| Functional Shock | MIL-STD-810F* / TBD |
* Uninterruptible Power Supply, 115VAC 60Hz 700Watts
* Compliance via analysis or similarity
