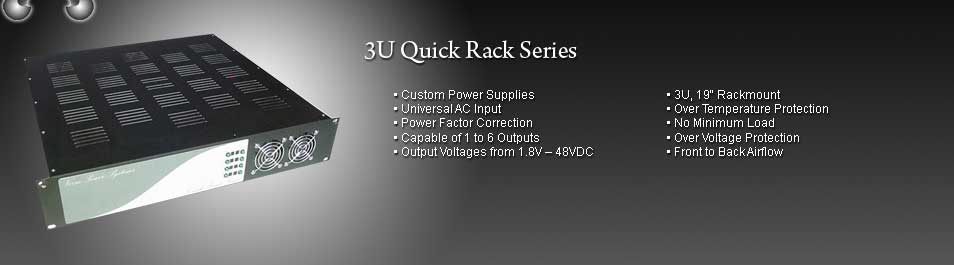

3U Quick Rack Series
Features & Benefits
- Configurable Power Supplies
with Short Lead Time - Universal AC Input
- Power Factor Correction
- Capable of 1 to 6 Outputs
- Output Voltages from 1.8V – 48VDC
- 3U, 19" Rackmount
- Over Temperature Protection
- No Minimum Load
- Over Voltage Protection
- Front to Back Airflow
| Item | Unit of Measure | Unit Price |
| AC Input Voltage | VAC | 85-264, 47-63Hz |
| DC Input Voltage | VDC | 24, 48, 120-370VDC |
| Input Current | Amps | 0-70Amps |
| Inrush Current | Amps | <200 Amps |
| Efficiency | % | 75 % Typical |
| Power Factor Correction | Standard on all Models | |
| Output Power | Watts | 500-6000 Watts Depending on Customer Configuration |
| Output Load Regulation | % | 1% Standard and <3% maximum |
| Output Line Regulation | % | <1% |
| Ripple and Noise | Pk - Pk | 2% pk - pk |
| Hold Up Time | mS | >16 mS at 80% Load |
| Remote Sense | Available on Outputs greater than 150 watts | |
| Operating Temperature | ºC | 0 to 50ºC Standard or -20 to 70ºC Available |
| Thermal Protection | Over Temperature Shut down on each Output | |
| Storage Temperature | ºC | -20 to 70ºC all Modules |
| Humidity | % | 5-95 % Non-Condensing |
| Altitude | Ft | 10,000 Ft |
| Over Voltage Protection | % | <150% of Rated Output |
